Hydronic Ceiling Cassette FCU Horizontal Concealed Fan Coil Unit For Shopping Malls

Hydronic Ceiling Cassette FCU Horizontal Concealed Fan Coil Unit For Shopping Malls

  • High Light

    Horizontal ceiling cassette fcu

    ,

    Hydronic ceiling cassette fcu

    ,

    Cassette horizontal concealed fan coil unit

  • Type
    Fan Coil Unit
  • Certification
    ISO9001
  • Condition
    New
  • Operating Voltage
    220V,220V/50Hz,customized
  • Mounting
    Ceiling Mount
  • After-sales Service Provided
    Video Technical Support,Online Support
  • Cooling Capacity
    3600w
  • Heating Capacity
    5400w
  • Air Flow
    680CMH 400CFM
  • Power Supply
    220V/50Hz
  • Noise
    41dB(A)
  • Product Name
    Fan Coil Unit
  • Warranty
    1 Year
  • Function
    Refrigeration/heating
  • Power Input
    62w
  • Place of Origin
    China
  • Brand Name
    XUGUANG
  • Certification
    ISO90001
  • Model Number
    FP-68WA
  • Minimum Order Quantity
    1 set
  • Packaging Details
    Carton
  • Delivery Time
    1 week
  • Payment Terms
    T/T
  • Supply Ability
    100 set per day

Hydronic Ceiling Cassette FCU Horizontal Concealed Fan Coil Unit For Shopping Malls

Product Application
Fan coil units are mainly composed of centrifugal fans and coil heat exchangers.It is the terminal device of the central air conditioning system.It is widely used in hotels, restaurants, factories, hospitals, exhibition galleries, shopping malls and moving buildings.It is used to meet the requirements of cooling, dehumidification, heating , creating a fresh and tranquil working and living environment.
Widely used in hotels, restaurants, factories, hospitals, exhibition hall, shopping malls, office rooms and other industrial and civil construction of the combined air-conditioning system to meet the cooling, heating and other requirements.



1) FRAME AND STRUCTURE
Panels and frame are made of galvanized steel, properly punched and punched for fixing both accessories and the unit itself.
2) COOLING OR HEATING COIL
The coils are made of seamless tubes expanded into aluminum fins in continuous block. The connections have brass headers with female fittings and provided with easily accessible vent and drainage valve.
3) FAN DECK
The fan decks are composed of double suction centrifugal fans with aluminum impellers and 3-speed fan motors. Each fan motor assembly is dynamically balanced.
4) DRIP TRAY
The drip trays are made from sheet metal treated with polyester powder coating to ensure total resistance to atmospheric agents.
5) FILTER
The easily removable filter is made of filtering honeycomb polypropylene fabric and supported by an aluminum frame.
The filter is installed on the units with plenum only.
6) ELECTRICAL CONNECTION BOX
All electric wires are connected to enclosed electrical terminal block, situated on the same side of the water connections.

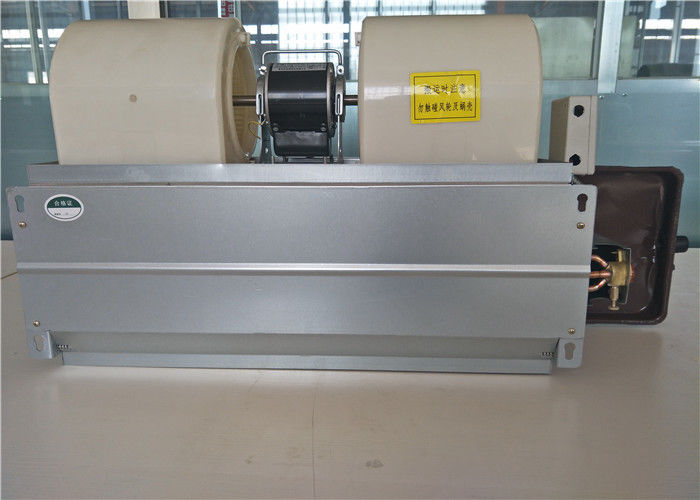

Hydronic Ceiling Cassette FCU Horizontal Concealed Fan Coil Unit For Shopping Malls 0
